Combining the trains

Concatenating the trains
STConcat is a function that takes two or more spike train obejcts and concatenates them in time.

[stTrain] = STConcat(stTrain1, stTrain2)
[stTrain] = STConcat(stTrain1, stTrain2, strLevel)
[stTrain] = STConcat(stCellTrain)
[stTrain] = STConcat(stCellTrain, strLevel)

By default STConcat will operate on the most complex available spike train level (ie first mappings, then instances). Concatenating our two spike trains will give us a train twice as long, but the definitions will be stripped away from the resulting train.

stLonger = STConcat(stRising, stFalling);

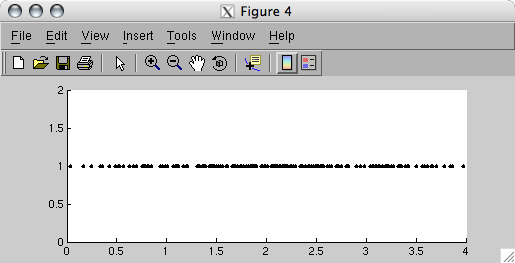

figure, STPlotRaster(stLonger);

If we once again use STDescribe to examine the resulting toolbox object, we can see that only a spike train instance remains.

STDescribe(stLonger)
--- Spike toolbox version [0.03]
This is an instantiated spike train:
   Using chunked mode encoding
   Duration [4.00] seconds
